| pART NO. |
|---|
| 5001010001 |
| 5001010002 |
| 5001010003 |
| 5001010008 |
| 5001010009 |

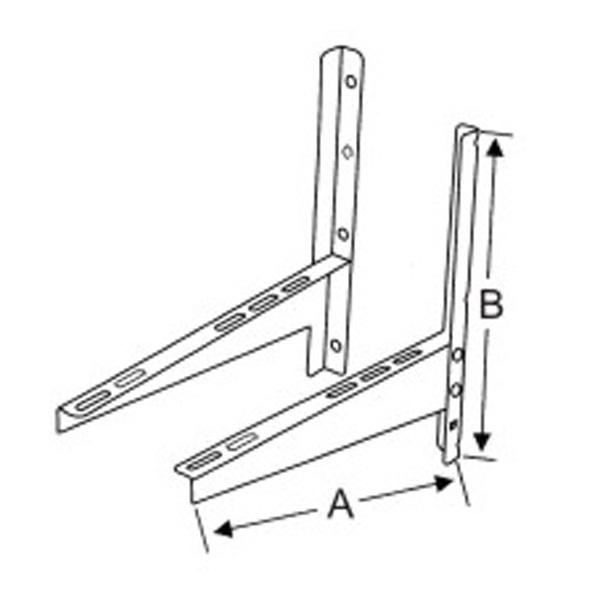

| MODEL nO. | sIZE A(MM) | SIZE B(MM) | THICKNESS(MM) | n.W.(KG) | max load(kg) | AC size(btu/h) |
|---|---|---|---|---|---|---|
| 301 | 460 | 460 | 1.8 | 2 | 180 | 7K-12K |
| 302 | 560 | 540 | 2.0 | 3 | 220 | 18K-24K |
| 303 | 600 | 600 | 2.4 | 4.2 | 270 | 24K-45K |
| 301B | 450 | 380 | 1.5 | 1.5 | 160 | 7K-12K |
| 302B | 550 | 450 | 1.7 | 2.4 | 220 | 18K-24K |
