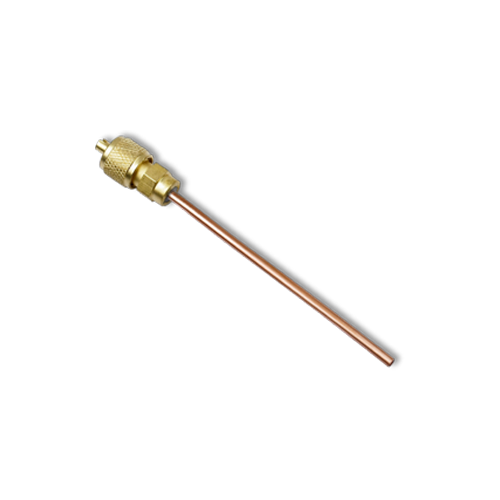

Charging valve

Charging valve:
Connection: 1/4 SAE, Pipe length 70mm
Thickness: 0.5mm
$0.00
Description
Description
The charging valve is an one-way service valve with valve inside.·
The charging valve is used on the freezer, cold store and air-conditioning unit.



Feature
-Equipped with imported valve inside of reliable performance.
-Double sealing ensure leak-tight.
-Copper tube of various lengths and hardness are available.
-Valve bonnet is knurled for easy handling.



Specification



ITEM
Applicable Refrigerant
Applicbale Medium Temperature
Max. Operating Pressure
Max. Allowable Pressure
Description
HCFC and HFC
-25℃~+120℃
3.0MPa
4.5MPa
