Insulated Copper Pipe/Line Set

Name: Insulated Copper Pipe/Line Set
Brand: CENTA (HK) LIMITED
SKU: 200401
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 200401

Mini Split Line Set: 1/4"x3/8", 1/4"x1/2",3/8"x5/8"
Insulated Copper Pipe

$0.00

INQUIRY

Description

Our insulated copper pipe is producted with high quality copper pipe and insulation pipe to conserve energy and prevent condensation. The products are offered in two types: INSULATED COPPER PIPE and MINI SPLIT LINE SETS.

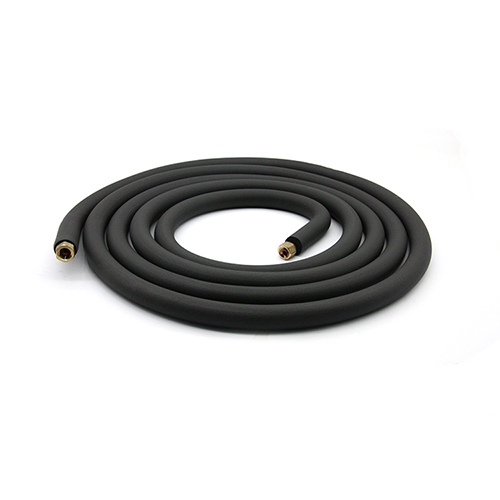

The insulated copper pipe is with plain end and it is easy for client to weld for different installation requirements.

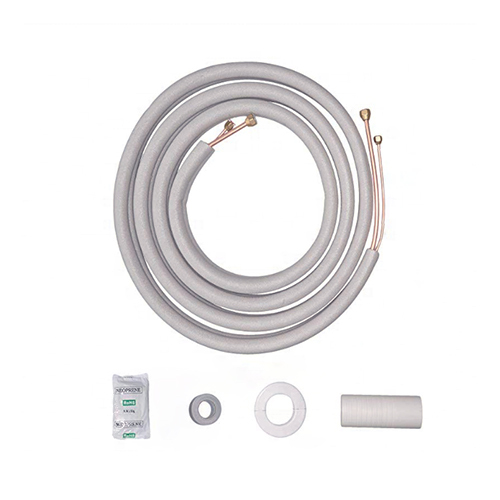

The mini split line set is designed for easy installation for ductless mini split systems. It comes with flared connectors already attached and ready to install, with PVC tape and plastics included, ensuring a secure connection between the indoor and outdoor units. You can order our standard line sets with the lengths of 3mts(9.8ft), 4mts(13.1ft) and 5mts(16.4ft) or contact with us to to customize the O.D., pipe length and insulation material.

Specification

Specification
1/4"x3/8"
1/4"x3/8"
1/4"x3/8"
1/4"x1/2"
1/4"x1/2"
1/4"x1/2"
3/8"x5/8"
3/8"x5/8"

copper pipe (O.D./Thickness)	Insulation Thickness	Length (mts/ft)	Suitabel for
6.350.6/9.520.7mm	3/8"	3mts/9.8ft	9K~12K Btu/h
6.350.6/9.520.7mm	3/8"	4mts/13.1ft	9K~12K Btu/h
6.350.6/9.520.7mm	3/8"	5mts/16.4ft	9K~12K Btu/h
6.350.6/12.70.75mm	3/8"	3mts/9.8ft	12K~18K Btu/h
6.350.6/12.70.75mm	3/8"	4mts/13.1ft	12K~18K Btu/h
6.350.6/12.70.75mm	3/8"	5mts/16.4ft	12K~18K Btu/h
9.520.7/15.880.75mm	3/8"	3mts/9.8ft	24K~36K Btu/h
9.520.7/15.880.75mm	3/8"	4mts/13.1ft	24K~36K Btu/h

These are our standard sizes for ductless mini split systems. The clients can also contact with us to customize the copper pipe O.D., length and specify the brand and thickness for insulation pipe.
