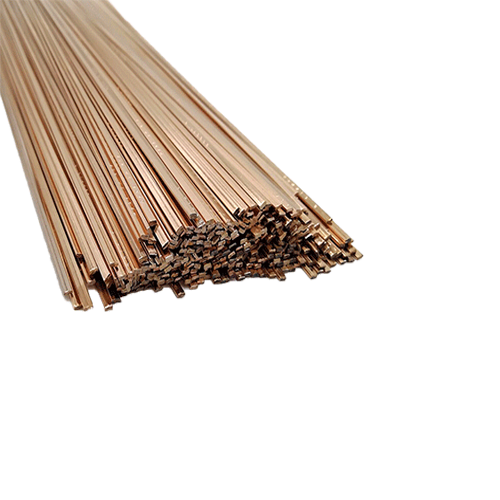

Phos-Copper Alloys

Name: Phos-Copper Alloys
Brand: CENTA (HK) LIMITED
Availability: InStock
Rating: 5 (1 reviews)

Harris Inferno®
Air-fuel equipment or
Harris oxy-acetylene
equipment
(Neutral flame)

· HARRIS 0:
Recognized and trusted all over the world, this is our most popular copper-to-copper brazing alloy which
is used for aftermarket HVAC installatio

$0.00

INQUIRY

Description

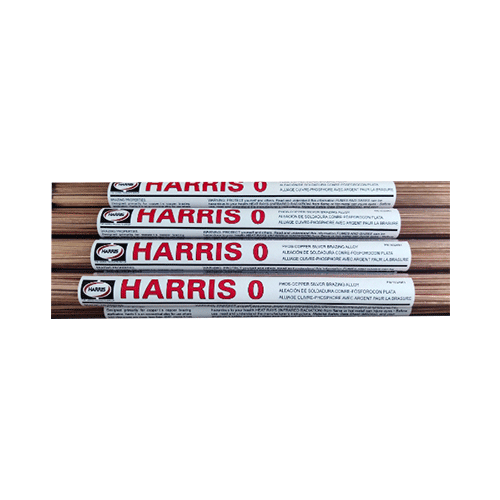

· HARRIS 0:
Recognized and trusted all over the world, this is our most popular copper-to-copper brazing alloy which
is used for aftermarket HVAC installation and repair. Harris 0 has extremely consistent "ow characteristics
because it is manufactured from the purest raw materials. The bright and shiny appearance of our
finished material shows our advanced manufacturing process capabilities and dedication to quality.

· STAY-SILV® 5:
This medium-range alloy is well suited where close fit-up cannot be maintained.
This filler metal is somewhat more ductile than Harris 0 or Stay-Silv2®.

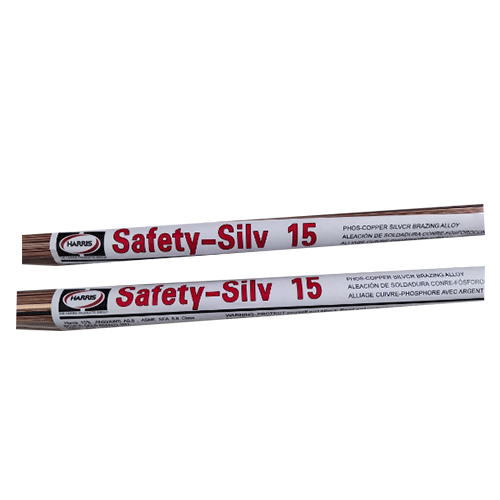

·STAY-SILV® 15:
For many years, the standards of the industry Harris Stay-Silv® 15 silver alloys has
proven its value. This filler metal is excellent for situations in which close fit-up does
not exist, and where thermal expansion and service vibration are involved.

Feature

- HARRIS 0:
Low cost alloy for many copper-to-copper applications where moderate fit-up can be maintained and brazing temperature is not critical.

- STAY-SILV® 5:
It is useful primarily where !t-up cannot be tightly controlled. And it is a medium melting range alloy.

- STAY-SILV® 15:
It is the industry standard for air conditioning/refrigeration applications. Its melting range is useful in filling wider clearances while providing good service ductility.

Specification

PRODUCT NUMBER
HARRIS 0
STAY-SILV® 5
STAY-SILV® 15

AWS A5.8.	Chemical Composition (%) Ag	Chemical Composition (%) cu	Chemical Composition (%) p	Melting Range SOLIDUS °F	Melting Range SOLIDUS °C	Melting Range LIQUIDUS °F	Melting Range Liquid °C	FLUIDITY rating
BCuP-2		92.9	7.1	1310	710	1475	802	5
BCuP-3	5	89	6	1190	643	1500	816	3
BCuP-5	15	80	5	1190	643	1480	804	3

Product number
HARRIS 0
STAY-SILV® 5
STAY-SILV® 15

Description
Application:For copper. Requires medium fit-up, .002-.007” clearance.
Application:For copper or brass. Used to bridge gaps where close fit-up can’t be maintained.
Application:For copper or brass. Useful for wide clearance. 002-.006”. Good ductility.
