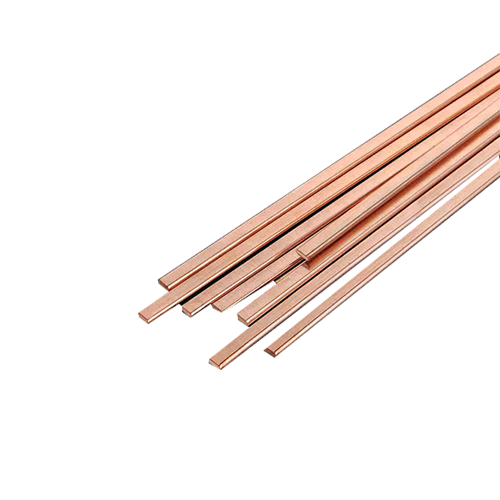

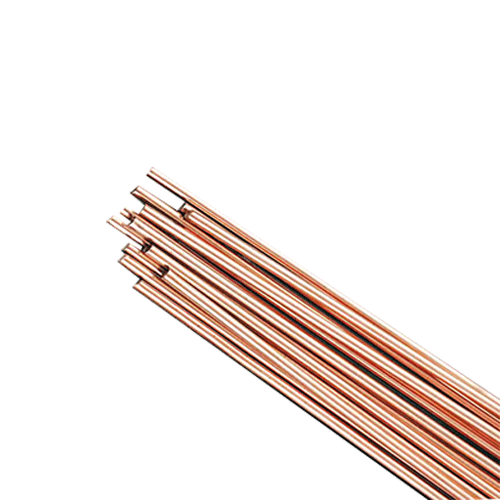

Phos-Copper Brazing Alloys

Name: Phos-Copper Brazing Alloys
Brand: CENTA (HK) LIMITED
Availability: InStock
Rating: 5 (1 reviews)

$0.00

INQUIRY

Description

Sanhuan phosphor-copper brazing alloy is a material with the binary alloy of copper-phosphors base, which has good mobility and processing property. It applies to contact welding, gas flame welding, HF brazing and some furnace welding. Phosphor-cooper brazing alloy has self- brazing and doesn't ' t need brazing flux.

Feature

- Close to eutectic crystal composition low melting point, easy flow into a small clearance of brazing seam.
- Contain less phosphors, has better plastic nature, a little higher melting point.
- Contain a little phosphorus, has better plastic nature, a little higher melting point.

Specification

PRODUCT number
SCuP-2
SAgP-5
SAgP-15

RELATE STANDARD	Chemical Composition (%) Ag	Chemical Composition (%) cu	Chemical Composition (%) p	Chemical Composition (%) sn	Chemical Composition (%) other	Melting Range SOLIDUS °F	Melting Range SOLIDUS °C	Melting Range LIQUID °F	Melting Range Liquid °C
CN: BCu93P(202) AWS A5.8: BCuP-2 JP: TC-310A		92.5-93.2	6.8-7.5		≤0.15	1310	710	1472	790
CN: BCu88PAg(205) AWS A5.8: BCuP-7 JP: TC-315	4.6-5.2	88.6-87.7	6.8-7.1	50	≤0.15	1193	645	1409	765
CN: BCu80PAg(204) AWS A5.8: BCuP-5	14.5-15.5	79.2-80.7	4.8-5.3	50	≤0.15	1193	645	1472	800

Product number
SCuP-2
SAgP-5
SAgP-15

Description
Application:Use for copper and copper alloy parts, suitable for air conditioning, refrigerator, evaporator, heat exchanger and water heater ect.
Application:Use for copper and brass parts with shock in air condition and freezer, copper and copper alloy tie-in electric motor meter. Low P content suitable for ample clearance, high P content suitable for gap tie-in.
Application:Use for brazing copper and copper parts in air-conditioner, freezer, compressor, electric motor.
