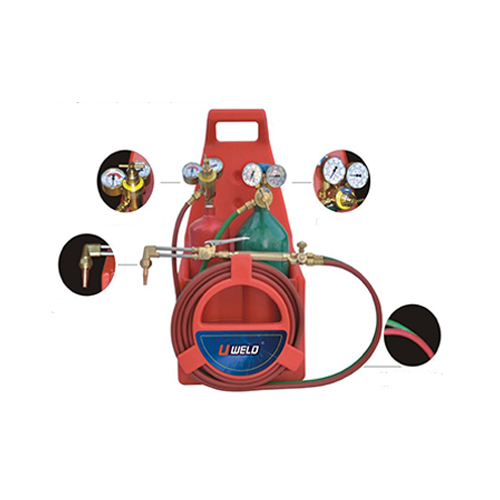

Portable welding PWC-001

Portable welding PWC-001
$0.00
Description
Description
· Cutting capacity is based on the size of the nozzle.
· With CGA200 inlet connection,CGA540 inlet connection and T Grade welding hose available, etc.
· All regulators, torch handle, cutting attachment, welding tips can be changed  according to your required models.

Feature

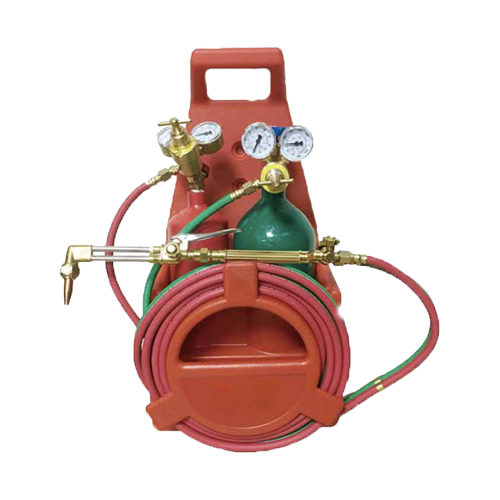

- Contains all the quality equipment needed for cutting, welding and brazing in a rugged surrounding plastic  carrying case.
- The outfit is designed to carry one 2L acetylene cylinder and one 4L oxygen cylinder.
- As supplied, the outfit can cut to 3/4''(19.1mm) and weld to 1/8''(3.2mm) with large tips.
- According to different requirements, optional tip sizes are available.


Specification



Model:PWC-001
Applicable Gas:
Application:
Capacity:
Light duty regulator:
Torch handle:
Oxygen Inlet:
Oxygen Outlet:
Acetylene Inlet:
Acetylene  Outlet:
Oxygen Cylinder:
Acetylene Cylinder:
Welding Tips:
Cutting Tip:
Description
Oxygen and acetylene
Medium-volum soldering
Cutting up to 3/4''(19.1mm)plate/ Welding up to 1/8''(3.2mm)plate
Forged full brass body with durability
Stainless steel needle valves with accuracy
CGA540
9/16''-18
CGA200 "MC" tank
9/16''-18
4L(20 CU.FT.) CGA540
2L(10L CU.FT. CGA200)
80V #1,#2
1-3-101
