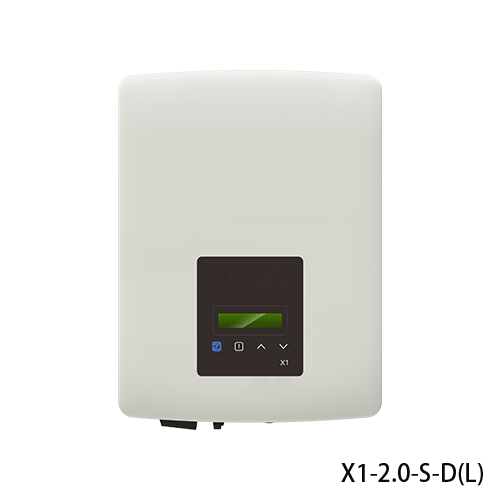

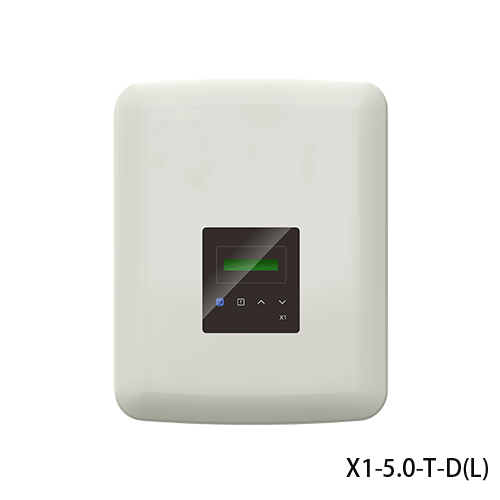

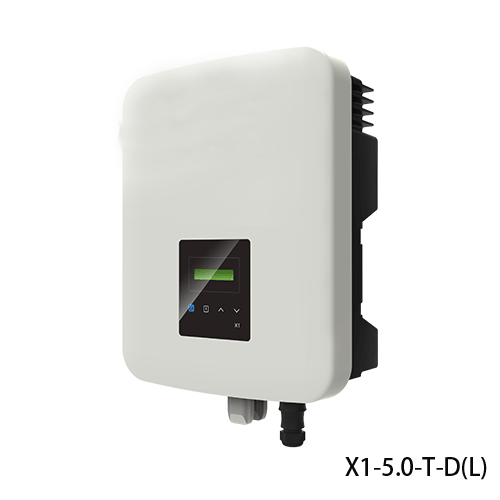

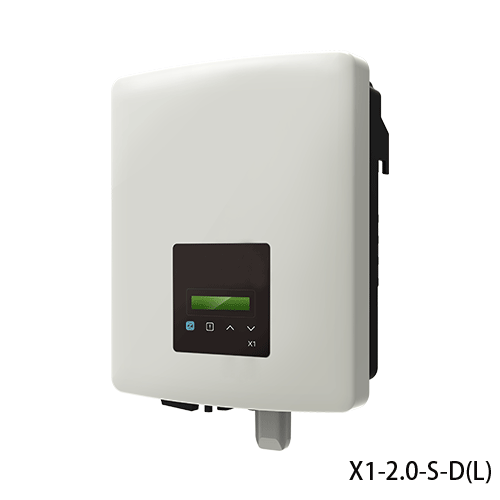

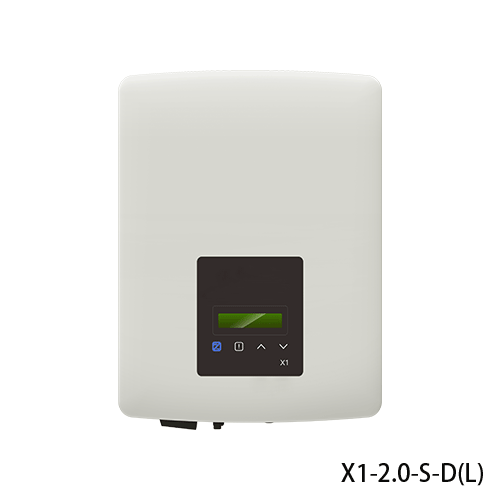

| Model | X1-2.0-S-D(L) | X1-5.0-T-D(L) |
|---|---|---|
| DC INPUT: | ||
| Max.PV array input power[Wp] |
3000 | 7500 |
| Max.PV input voltage[V] | 450 | 600 |
| Start-up voltage[V] | 45 | 80 |
| Nominal input voltage[V] | 360 | 360 |
| MPP tracker voltage range[V] | 50~430 | 70~580 |
| No. of MPP tracker/Strings per MPP tracker | 1/1 | 2/1 |
| Max.input current(input A/input B)[A] | 14 | 14/14 |
| Max.shot circuit current(input A/input B)[A] | 16 | 16/16 |
| AC OUTPUT: | ||
| Nominal AC output power[Wp] | 2000 | 5000* |
| Nominal AC output current[A] | 8.70 | 21.70 |
| Max.AC output apparent current [VA] | 2200 | 5500* |
| Max.AC output current[A] | 9.6 | 23.9* |
| Nominal AC voltage[V] | 220/230/240;180~280 | 220/230/240;(180~280) |
| Nominal grid frequency/ Grid frequency range | 50/60;±5 | 50/60;±5 |
| Displacement power factor | 0.8leading~0.8lagging | 0.8leading~0.8lagging |
| THDI(rated power) | <3 | <2 |
| SYSTEM DATA: | ||
| Max.efficiency[％] | 98 | 97.80 |
| Euro.efficiency[％] | 96.50 | 97.00 |
| Standby consumpition [W]. Night | <1 | <2 |
| Ingress protection | IP66 | IP66 |
| Operating temperature range[℃] | -25~+60(derating at 45) | -25~+60(derating at 45℃) |
| Max. operation altitude[m] | ≤2000 | ≤3000 |
| Humidity[％] | 0~100(condensation) | 0~100(Condensing) |
| Typical noise emission[dB] | <25 | <25 |
| Storage temperature[℃] | -30~+70 | -30~+70 |
| Dimensions(W*H*D)[mm] | 267*328*126 | 430*341.5*143 |
| Weight[kg] | 6 | 15 |
| Cooling concept | Natural | Natural |
| Communication interfaces | RS484/DRM/Pocket Wi-Fi/LAN/GPRS(optional)/ USB/CT/Meter(optional) |
RS485/DRM/Pocket Wi-Fi/LAN/GPRS(optional)/ USB-Upgrade/CT/Meter(optional) |
| Protection: | ||
| over/under voltage protection | YES | |
| >DC isolation protection | YES | |
| >Monitoring ground fault protection | YES | |
| Grid monitoring | YES | |
| >DC injection monitoring | YES | |
| >Back feed current monitoring | YES | |
| Residual current detection | YES | |
| >Anti-islanding protection | YES | |
| Over temp protection | YES | |
| SPD | YES | |
| STANDARD : | ||
| Safety | EN/IEC62109-1/-2 | |
| EMC | EN61000-6-1/2/3/4;EN61000-3-2/3/11/12 | |
| SPD | IEC61/27/G98/AS/NZS 4777.2/VDE4105/ EN50549/CEI-W21/RD1699/UNE 206007-1/VFR and so on |
|
