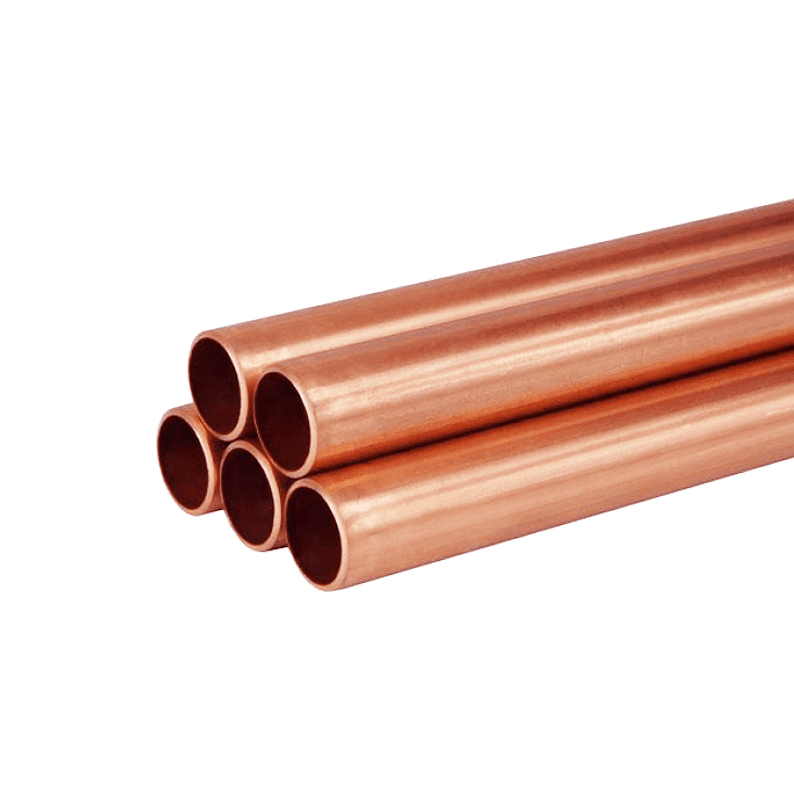

Nominal
inches
|
|---|
| 1/4 |
| 3/8 |
| 1/2 |
| 5/8 |
| 3/4 |
| 1 |
| 1 1/4 |
| 1 1/2 |
| 2 |
| 2 1/2 |
| 3 |
| 3 1/2 |
|
o.d.
inches
|
o.d.
(mm)
|
type m
thk(in)
|
type m
thk(mm)
|
type m
n.w.(kg)
|
type l
thk(in)
|
type l
thk(mm)
|
type l
n.W.(kg)
|
type k
thk(in)
|
type k
thk(mm)
|
type k
n.w.(kg)
|
length
in/mm
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/8 | 9.53 | / | / | / | 0.03 | 0.76 | 1.14 | 0.035 | 0.89 | 1.31 | 20/6.1 |
| 1/2 | 12.70 | 0.025 | 0.64 | 1.31 | 0.035 | 0.89 | 1.79 | 0.049 | 1.24 | 2.43 | 20/6.1 |
| 5/8 | 15.88 | 0.028 | 0.71 | 1.84 | 0.04 | 1.02 | 2.58 | 0.049 | 1.24 | 3.11 | 20/6.1 |
| 3/4 | 19.05 | / | / | / | 0.042 | 1.07 | 3.13 | 0.049 | 1.24 | 3.78 | 20/6.1 |
| 7/8 | 22.23 | 0.032 | 0.81 | 2.97 | 0.045 | 1.14 | 4.11 | 0.065 | 1.65 | 5.80 | 20/6.1 |
| 1 1/8 | 28.55 | 0.035 | 0.89 | 4.20 | 0.05 | 1.27 | 5.92 | 0.065 | 1.65 | 7.58 | 20/6.1 |
| 1 3/8 | 34.93 | 0.042 | 1.07 | 6.17 | 0.055 | 1.4 | 8.00 | 0.065 | 1.65 | 9.38 | 20/6.1 |
| 1 5/8 | 41.28 | 0.049 | 1.24 | 8.51 | 0.06 | 1.52 | 10.34 | 0.072 | 1.83 | 12.32 | 20/6.1 |
| 2 1/8 | 53.98 | 0.058 | 1.47 | 13.21 | 0.07 | 1.78 | 15.84 | 0.083 | 2.11 | 18.67 | 20/6.1 |
| 2 5/8 | 66.68 | 0.065 | 1.65 | 18.33 | 0.08 | 2.03 | 22.43 | 0.095 | 2.41 | 26.47 | 20/6.1 |
| 3 1/8 | 79.38 | 0.072 | 1.83 | 24.21 | 0.09 | 2.29 | 30.09 | 0.109 | 2.77 | 36.21 | 20/6.1 |
| 3 5/8 | 92.08 | 0.083 | 2.11 | 32.38 | 0.1 | 2.54 | 97.07 | 0.12 | 3.05 | 46.33 | 20/6.1 |
|
nominal
inches
|
|---|
| 3/8 |
| 1/2 |
| 5/8 |
| 3/4 |
| 7/8 |
| 1 1/8 |
| 1 3/8 |
|
o.d.
(inches)
|
o.d.
(mm)
|
Inside Diameter
(inches)
|
Wall Thickness
(inches)
|
Wall
Thickness (mm)
|
Length
(feet)
|
Length
(meters)
|
weight
(KG)
|
|---|---|---|---|---|---|---|---|
| 3/8 | 9.53 | 0.315 | 0.03 | 0.76 | 19 | 5.8 | 1.08 |
| 1/2 | 12.70 | 0.43 | 0.035 | 0.89 | 19 | 5.8 | 1.71 |
| 5/8 | 15.88 | 0.545 | 0.04 | 1.02 | 19 | 5.8 | 2.45 |
| 3/4 | 19.05 | 0.666 | 0.035 | 0.89 | 19 | 5.8 | 3.11 |
| 7/8 | 22.23 | 0.785 | 0.045 | 1.14 | 19 | 5.8 | 3.91 |
| 1 1/8 | 28.58 | 1.025 | 0.05 | 1.27 | 19 | 5.8 | 5.63 |
| 1 3/8 | 34.93 | 1.265 | 0.055 | 1.4 | 19 | 5.8 | 7.6 |
| item |
|---|
| Alloy No. |
| Cu (%) |
| Phosphorus (%) |
| Temper O50 |
| Tensile Strength |
| DEscription |
|---|
| C12200 |
| 99.9% |
| 0.015-0.04% |
| O50 |
| >=245 |
