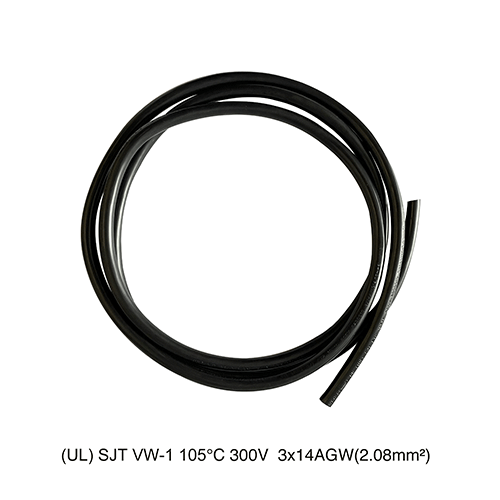

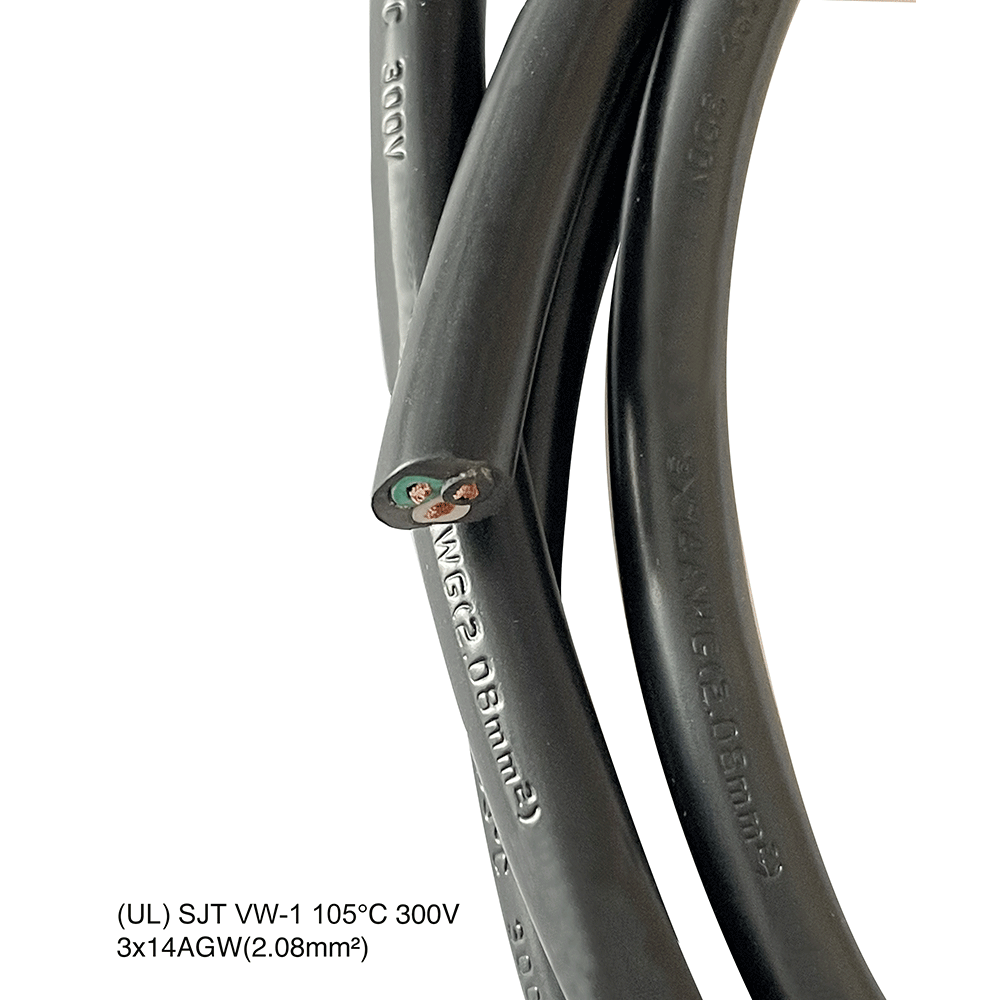

UL SJT PVC Power Cable

Name: UL SJT PVC Power Cable
Brand: CENTA (HK) LIMITED
Availability: InStock
Rating: 5 (1 reviews)

UL SJT Power Supply Cord (Unsheltered Type Lead Free)

$0.00

INQUIRY

Description

· Bare stranded copper conductor.
· Color-coded PVC insulation.
· PVC jacketed water-resistant type.

· Application: For Air conditioner, portable hand tools, washing machines, polishers,
sanders, vibrators, lighting fixtures, dish washer, medical equipment and office machine.

Feature

- Rated temperature: 60℃，75℃，90℃&105℃
- Rated voltage: 300 Volts.
- Passed VW-1 vertical flame test.
- Oil-resistant type: SJTO is available.
- Outdoor-use cord type: SJTW is available.
- Passes-40℃ cold bend test and water resistant.
- SJTW passes CSA cold bend test.

Specification

conductor Awg
18*2C
16*2C
14*2C
12*2C
10*2C
18*3C
16*3C
14*3C
12*3C
10*3C
18*4C
16*4C
14*4C
12*4C
10*4C
18*5C
16*5C
14*5C
12*5C
10*5C

conductor no./mm	insulation thickness mm	sheath thickness mm	MAx. conductor resistance at 20℃ Ω/km (bare)	MAx. conductor resistance at 20℃ Ω/km (tinned)	overall diameter mm
41/0.160	0.76	0.76	22.4	23.6	7.20±0.10
65/0.160	0.76	0.76	14.1	14.9	7.85±0.10
41/0.254	0.76	0.76	8.88	9.34	8.60±0.10
65/0.254	0.76	1.14	5.58	5.88	9.70±0.10
105/0.254	1.14	1.52	3.51	3.7	14.75±0.15
41/0.160	0.76	0.76	22.4	23.6	7.70±0.10
65/0.160	0.76	0.76	14.1	14.9	8.35±0.10
41/0.254	0.76	0.76	8.88	9.34	9.20±0.10
65/0.160	0.76	1.14	5.58	5.88	10.30±0.15
105/0.254	1.14	1.52	3.51	3.7	15.60±0.15
41/0.160	0.76	0.76	22.4	23.6	8.35±0.10
65/0.160	0.76	0.76	14.1	14.9	9.00±0.10
41/0.254	0.76	0.76	8.88	9.34	10.00±0.10
65/0.254	0.76	1.14	5.58	5.88	12.15±0.15
105/0.254	1.14	1.52	3.51	3.7	17.10±0.15
41/0.160	0.76	0.76	22.4	23.6	9.05±0.10
65/0.160	0.76	0.76	14.1	14.9	10.00±0.10
41/0.254	0.76	0.76	8.88	9.34	11.75±0.15
65/0.254	0.76	1.14	5.58	5.88	13.30±0.15
105/0.254	1.14	1.52	3.51	3.7	18.70±0.15
