vde
type
|
|---|

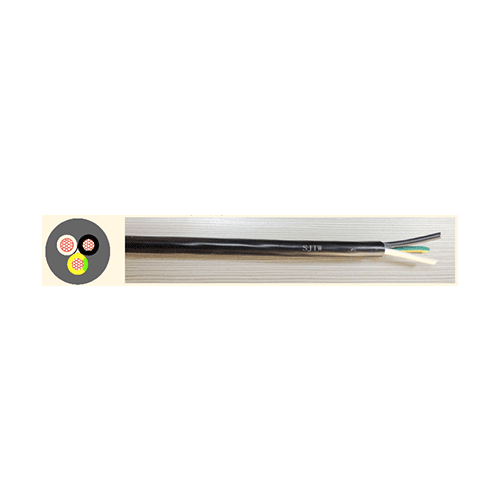

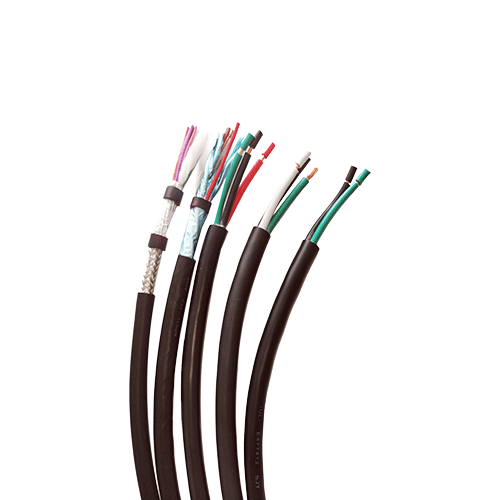

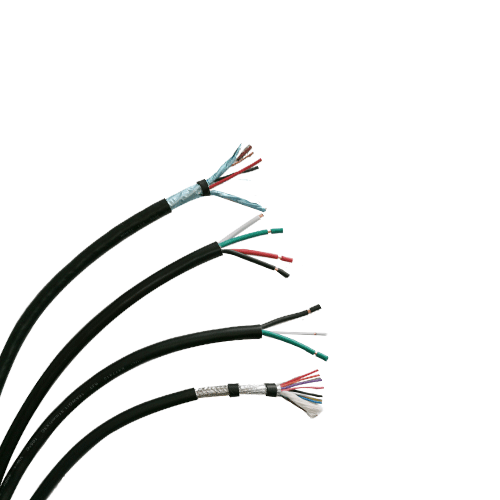

H07RN-F |
|
conductor
section(mm²)
|
conductor
Diameter NO./mm
|
insulation
mm
|
jacket
mm
|
overall
mm
|
max.conductor resistance at 20℃
ohm/kft
|
||
|---|---|---|---|---|---|---|---|
| 3*1.5 | 30/0.25 | 0.80 | 1.40 | 10.10±0.50 | 13.3 | ||
| 3*2.5 | 49/0.25 | 0.90 | 1.40 | 12.10±0.50 | 7.98 | ||
| 3*4 | 56/0.30 | 1.00 | 1.50 | 13.90±0.50 | 4.95 | ||
| 3*6 | 84/0.30 | 1.00 | 1.60 | 15.40±0.50 | 3.3 | ||
| 3*10 | 84/0.40 | 1.20 | 1.80 | 21.50±1.00 | 1.91 | ||
| 3*16 | 127/0.40 | 1.20 | 1.90 | 24.20±1.00 | 1.21 | ||
| 3*25 | 189/0.40 | 1.40 | 2.00 | 28.9±1.00 | 0.78 | ||
| 3*35 | 259/0.40 | 1.40 | 2.20 | 31.90±1.00 | 0.554 | ||
| 3*50 | 370/0.40 | 1.60 | 2.40 | 37.20±1.00 | 0.386 | ||
| 4*1.5 | 30/0.25 | 0.80 | 1.50 | 11.10±0.50 | 13.3 | ||
| 4*2.5 | 49/0.25 | 0.90 | 1.70 | 13.30±0.50 | 7.98 | ||
| 4*4 | 56/0.30 | 1.00 | 1.80 | 15.20±0.50 | 4.95 | ||
| 4*6 | 84/0.30 | 1.00 | 2.00 | 17.20±0.50 | 3.3 | ||
| 4*10 | 84/0.40 | 1.20 | 3.10 | 23.50±1.50 | 1.91 | ||
| 4*16 | 127/0.40 | 1.20 | 3.30 | 26.50±1.50 | 1.21 | ||
| 4*25 | 189/0.40 | 1.40 | 3.60 | 32.10±1.50 | 0.78 | ||
| 4*35 | 259/0.40 | 1.40 | 3.90 | 35.40±1.50 | 0.554 | ||
| 4*50 | 370/0.40 | 1.60 | 4.30 | 41.10±1.50 | 0.386 | ||
| 5*1.5 | 30/0.25 | 0.80 | 1.80 | 12.20±0.50 | 13.3 | ||
| 5*2.5 | 49/0.25 | 0.90 | 2.00 | 14.60±0.50 | 7.98 | ||
| 5*4 | 56/0.30 | 1.00 | 2.20 | 16.90±0.50 | 4.95 | ||
| 5*6 | 84/0.30 | 1.00 | 2.50 |
|
3.3 | ||
| 5*10 | 84/0.40 | 1.20 | 3.60 | 25.90±1.50 | 1.91 | ||
| 5*16 | 127/0.40 | 1.20 | 3.90 | 29.40±1.50 | 1.21 | ||
| 5*25 | 189/0.40 | 1.40 | 4.40 | 35.50±1.50 | 0.78 | ||
| 5*35 | 259/0.40 | 1.40 | 4.70 |
|
0.554 | ||
| 5*50 | 370/0.40 | 1.60 | 5.10 | 43.90±1.50 | 0.386 | ||
| 3*2.5+1*1.5 | 49/0.25+30/0.25 | 0.9/0.8 | 2.0 | 12.80±0.50 | 7.98/19.5 | ||
| 3*4.0+1*2.5 | 56/0.30+49/0.25 | 1.0/ 0.9 | 2.0 | 14.60±0.50 | 4.95/7.98 | ||
| 3*4.0+1*4 | 84/30+56/0.30 | 1.0/1.0 | 2.2 | 16.40±0.50 | 3.30/4.95 |
