Name: Surge Protector Device
Brand: CENTA (HK) LIMITED
Availability: InStock
Rating: 5 (1 reviews)

Description

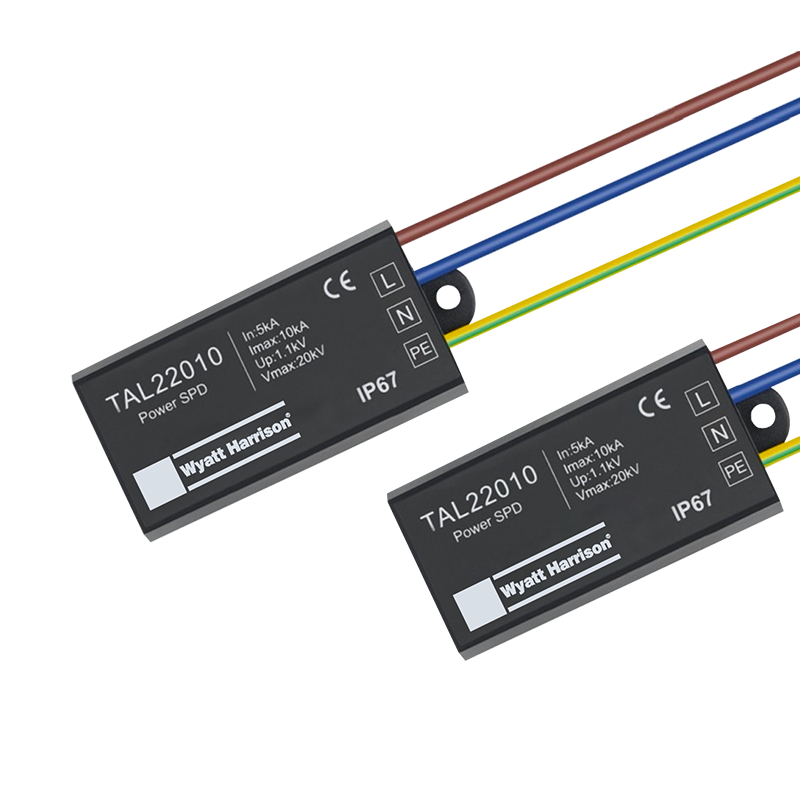

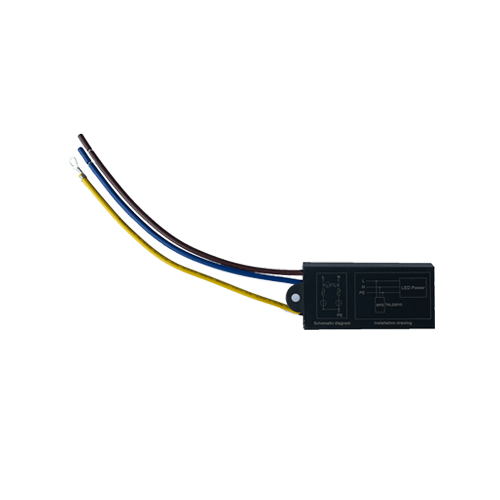

LED Street Lights Power SPD: TAL22010 designed for protecting LED Driver and could be connected perfectly with its input port, sealed enclosure, waterproof and dustproof, IP67 protection grade, belongs to Class II ,III power SPD. This SPD use common mode, differential mode, full protection with leakage current and cut the over-current capabilities.

Feature

- Maximum Discharge Current: 10kA, 8/20us.
- Meets ANSI C82.77-5-2015:Location Category CM,10kV/5kA,1.2/50µS-8/20µS Combination Wave.
- Meets IEEE C62.41.2:Location Category CLow,6kV/3kA,1.2/50µS-8/20µS Combination Wave.
- Meets US Dept. of Energy MSSLC Model Spec.
- Parallel connected SPD device.
- IP67 Water-proof and Dust-proof.
- Indication wire lead options for Parallel connected modules.
- IEC61643-11 Class II/EN61643-11 Type 2 Compliant1.
- 110Vac and 277Vac voltage ratings are available for Class I and Class II installation based on IEC luminaire protection classes
- CE - Meets the requirements of Low Voltage and RoHS European Directives

Specification

Part Number

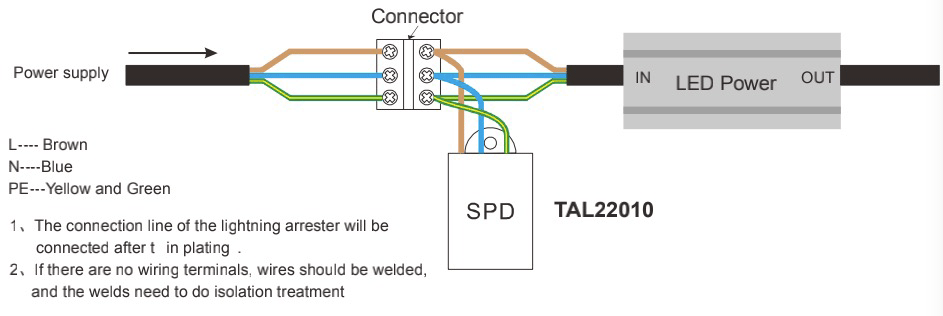

TAL22010

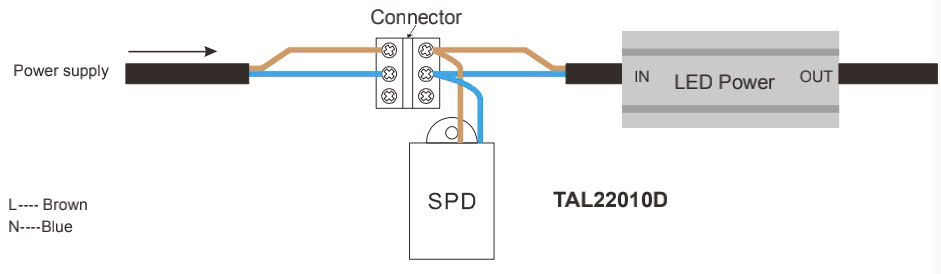

TAL22010D

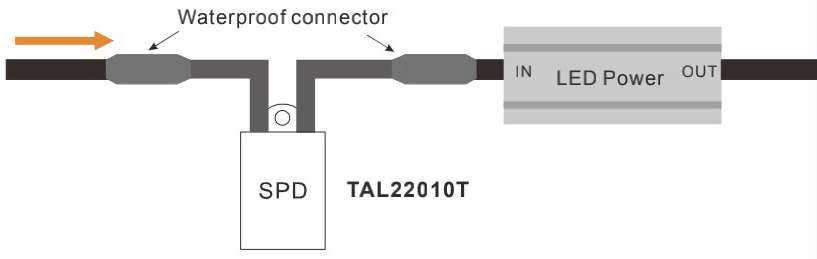

TAL22010T

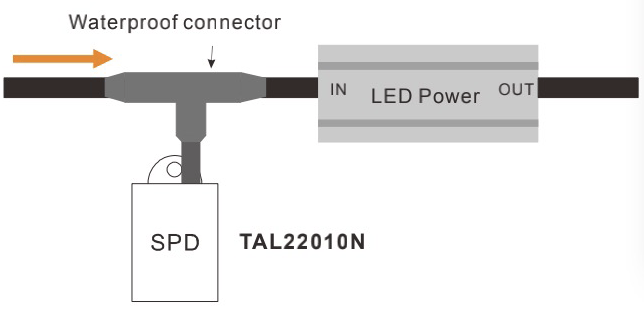

TAL22010N

nom.voltage U0 (VAC)	Max. Continuous Voltage Uc (VAC)	Nom.discharge current(8/20μs) In(kA)	Max.discharge current(8/20μs) Imax(kA)	Nom. discharge voltage Uoc(kV)	Voltage protection level Up(kV)	Response time tA(ns)	Cross-section area AWG	Weight g	Safety Compliance ce	Safety Compliance UL
110~227	320	5	10	10	1.1	25	16	57	√	√
110~227	320	5	10	10	1.1	25	16	47	√	√
110~227	320	5	10	10	1.1	25	3*1.0	74	√	√
110~227	320	5	10	10	1.1	25	3*1.0	59	√	√

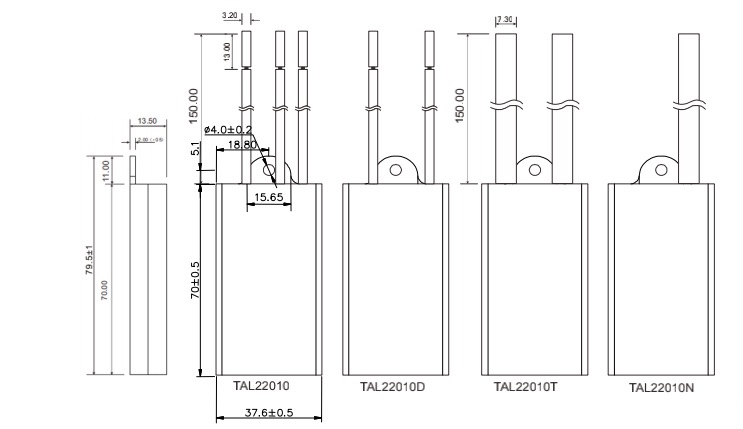

ITEM
SIZE(MM)
ENCLOSURE MATERIAL
OPERRATING TEMPERATURE RANGE

Description
79.537.613.5
ABS765A(94VO)
-40℃ to 80℃
