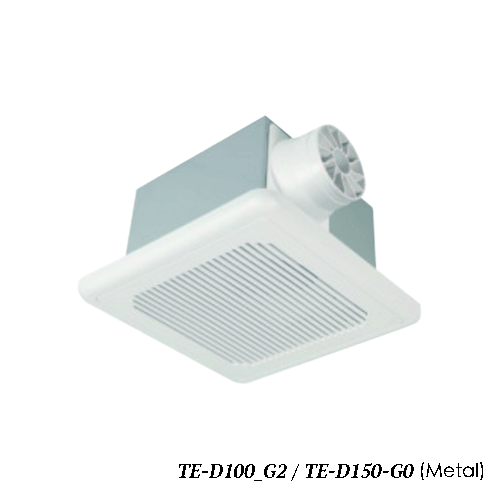

Curva Smart Series

$0.00
Description
Description
When Curva Smart Series is powered on, it can operate for 24 hours every day without stop. The temperature sensor and humidity sensor will detect the air temperature and humidity automatically. If the temperature is below 28 degrees or the humidity is below 80%, the fan will change into low speed automatically to save energy. If the temperature is above 28 degrees or the humidity is above 80%, the fan will operate with high speed to refresh the air quickly. Thanks to the smart control technology and the EC motor, even running 24 hours per day, the energy consumption can reach as low as 1 kw/h /month.

Feature
- Beautiful and fashionable appearance design.
- Suitable for integration, traditional panel use.
- Ultra-thin boby to achieve narrow space installation.
- Suitable for integrated or ordinary ceiling panels.

Specification


Model
TE-D100_G1 (Plastic)
TE-D100-G2/ TE-D150-G0 (Metal)
speed TEMP. HUM. VOC.
2-speed Low(≤28℃) High(>28℃) Low(≤80%) High(>80%)  Low(0) High (1 2 3)
3-speed I(<28℃) II(28-30℃),
III(>30℃)
Low(<80%) II(80-85%), III(>85%)  I(0), II(1、2), III(3)

Model
TE-D100_G1 (Plastic)
TE-D100-G2
E-D150-G0
VOltage(V) POWEr(W) AIR FLOW(m³/h) NOISE dB(A) Pipeline Size(mm)
220/110 2.6~6 120~186 31~34 ∅100
220/110 4.3~6.9~12.5 90~120~156 30~35~41 ∅100
220/110 6~11.2~27.3 192~258~366 32~39~45 ∅150
