V-bank filter
Model
|
|---|

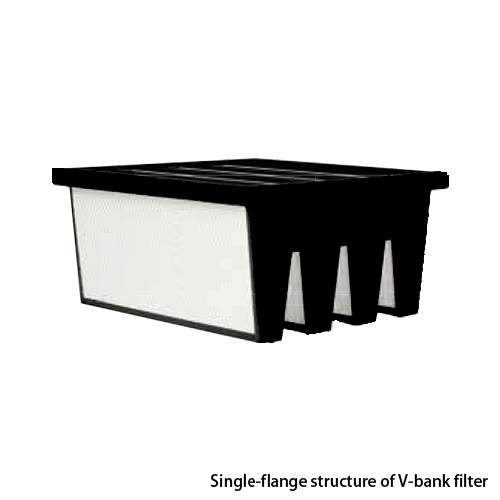

| Single-flange structure |
| Single-flange structure |
| Single-flange structure |

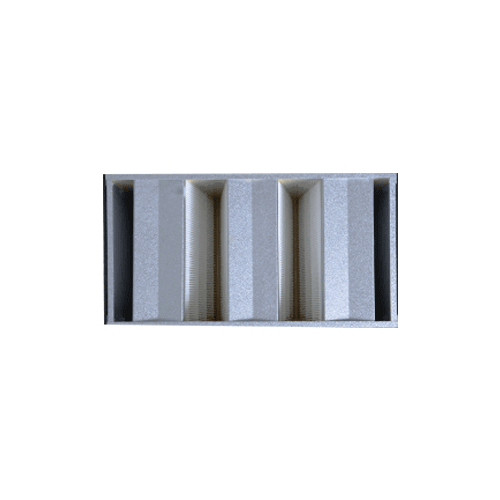

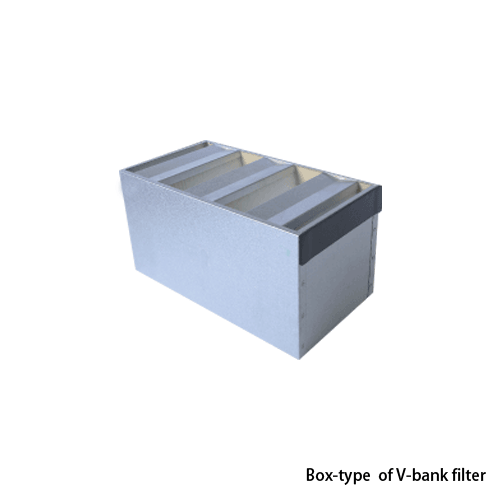

| Box type |
| Box type |
| Box type |
| Box type |
| Box type |
| Box type |
|
Nominal dimension
inch
|
Actually dimension
mm
|
RATED air volume
m³/h
|
V number
PCS
|
RATED INITIAL RESISTANCE
f6 (pa)
|
RATED INITIAL RESISTANCE
f7 (pa)
|
RATED INITIAL RESISTANCE
f8 (pa)
|
RATED INITIAL RESISTANCE
f9 (pa)
|
RATED INITIAL RESISTANCE
H11 (pa)
|
RATED INITIAL RESISTANCE
h12 (pa)
|
RATED INITIAL RESISTANCE
h13 (pa)
|
RATED INITIAL RESISTANCE
h14 (pa)
|

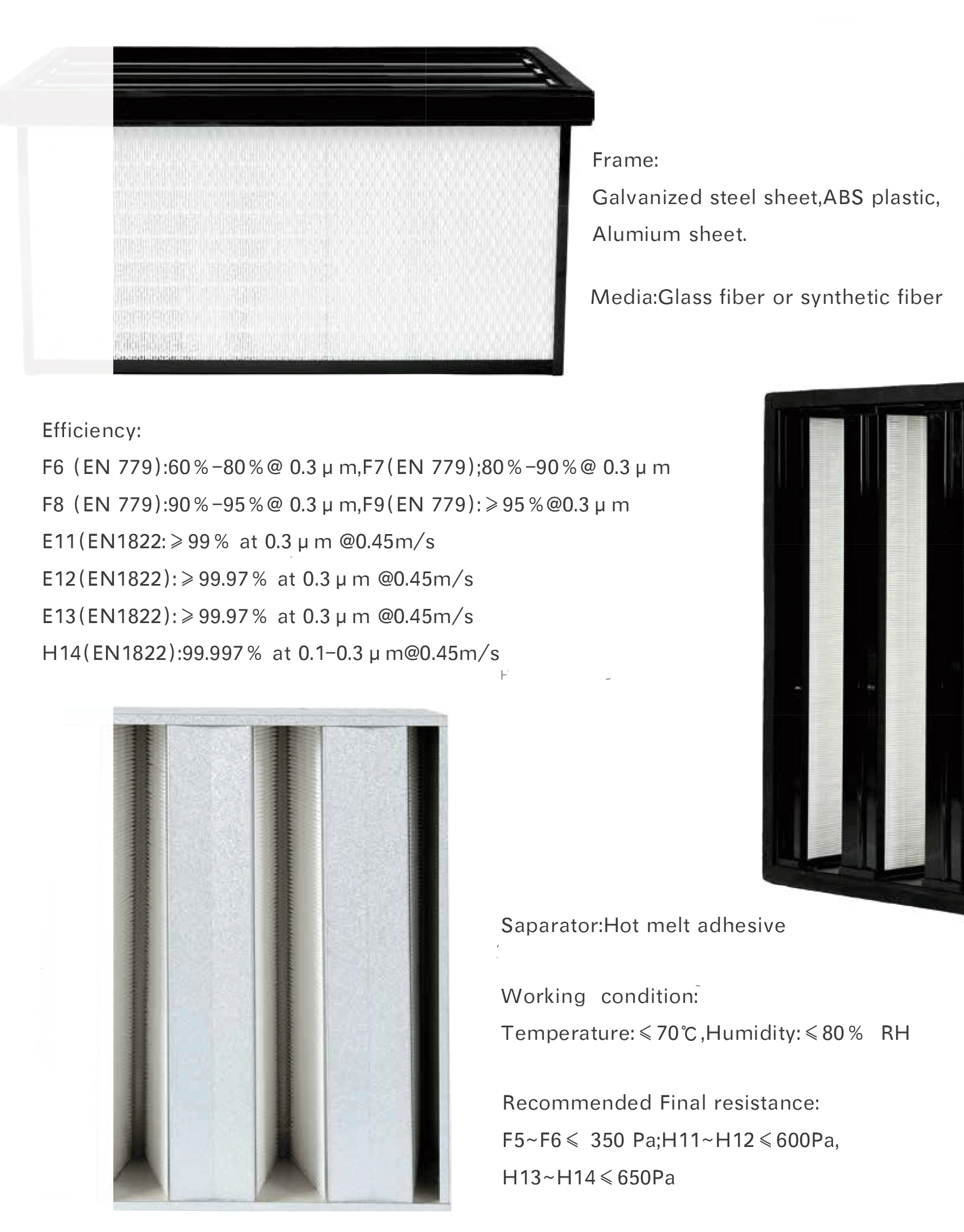

|---|---|---|---|---|---|---|---|---|---|---|---|
| 24*24*12 | 592*592*292 | 3400 | 4 | 80 | 100 | 130 | 170 | 230 | 255 | / | / |
| 24*20*12 | 592*490*292 | 2800 | 4 | 80 | 100 | 130 | 170 | 230 | 255 | / | / |
| 24*12*12 | 592*287*292 | 1700 | 4 | 80 | 100 | 130 | 170 | 230 | 255 | / | / |
| 24*24*12 | 610*610*292 | 3400 | 4 | 80 | 100 | 130 | 170 | 230 | 255 | / | / |
| 24*12*12 | 610*305*292 | 2800 | 4 | 80 | 100 | 130 | 170 | 230 | 255 | / | / |
| 24*24*12 | 610*610*292 | 3400 | 4 | / | / | / | / | / | / | 230 | 250 |
| 24*1212 | 610*305*292 | 1700 | 4 | / | / | / | / | / | / | 230 | 250 |
| 24*24*12 | 592*592*292 | 3200 | 4 | / | / | / | / | / | / | 230 | 250 |
| 24*12*12 | 592*287*292 | 1600 | 4 | / | / | / | / | / | / | 230 | 250 |
| Model |
|---|
| Frame |
| Media |
Efficiency |
| Separator |
| Sealant |
| Working condition |
| Recommended final resistance drop |
| single-flange structure of v-bank filter |
|---|
| Galvanized steel sheet,ABS plastic, Aluminum sheet. |
| Glass fiber or synthetic fiber |
| F6 (EN 779):60％-80％@ 0.3μm,F7(EN 779);80％-90％@ 0.3μm F8 (EN 779):90％-95％@ 0.3μm,F9(EN 779):≥95％@0.3μm E11(EN1822:≥99％ at 0.3μm @0.45m/s E12(EN1822):≥99.97％ at 0.3μm @0.45m/s H13(EN1822):≥99.97％ at 0.3μm @0.45m/s H14(EN1822):≥99.997％ at 0.1-0.3μm@0.45m/s |
| Hot melt adhesive |
| Polyurethane |
| Temperature:≤70℃,Humidity:≤80％ RH |
| F5~F6≤ 350 Pa;H11~H12≤600Pa, H13~H14≤650Pa |
