Fibreglass Pockets Filter

Name: Fibreglass Pockets Filter
Brand: CENTA (HK) LIMITED
Availability: InStock
Rating: 5 (1 reviews)

Fibreglass Pockets Filter & Chemical (Medium Efficiency filter)

$0.00

INQUIRY

Description

Bag filters have been widely used in central HVAC system pharmaceuticals,hospital,eletronics indusrial purificaiton,food plant,etc.They can also be used for prefiltration ahead of HEPA filter.

Feature

Each pocket can be fully inflated and also maintain a proper spacing under the design of V-shaped,so that the clean air comes out through the exit from the front to the back.Media and metal frame are glued to ensure sealability.

Specification

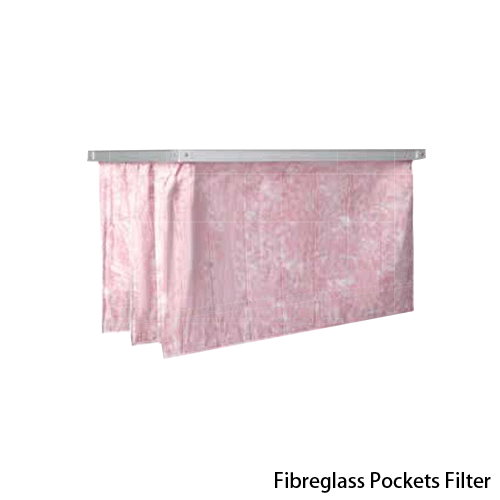

Fibreglass Pockets Filter

Nominal Dimension inchES
242421
202421
122421
202021

Actually dimension mm	number of pockets PCS	RATED air volume m³/h	RATED INITIAL RESISTANCE F5 (Pa)	RATED INITIAL RESISTANCE F6 (Pa)	RATED INITIAL RESISTANCE F7 (Pa)	RATED INITIAL RESISTANCE F8 (Pa)
592592534	10	3400	85	95	115	140
592592534	8	2800	85	95	115	140
287592534	5	1700	85	95	115	140
490592534	8	2300	85	95	115	140

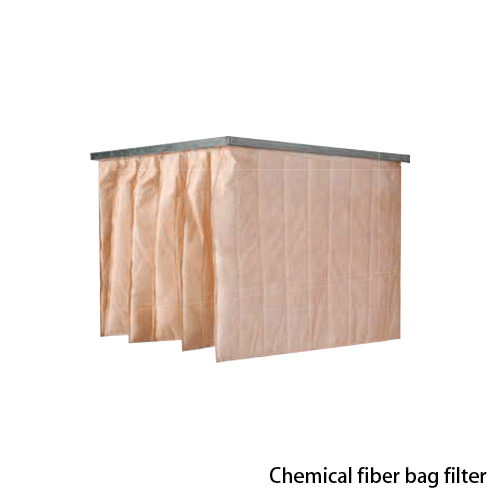

Chemical Fiber Bag Filter

Nominal Dimension inchES
242421
202421
122421
202021

ACTually dimension mm	number of pockets PCS	RATED air volume m³/h	RATED INITIAL RESISTANCE F5 (Pa)	RATED INITIAL RESISTANCE F6 (Pa)	RATED INITIAL RESISTANCE F7 (Pa)	RATED INITIAL RESISTANCE F8 (Pa)
592592534	6	3400	70	80	90	105
592592534	5	2800	70	80	90	105
287592534	3	1700	70	80	90	105
490592534	5	2300	70	80	90	105

Model
Frame
Media
Efficiency
Support
Working condition
Rated final resistance drop

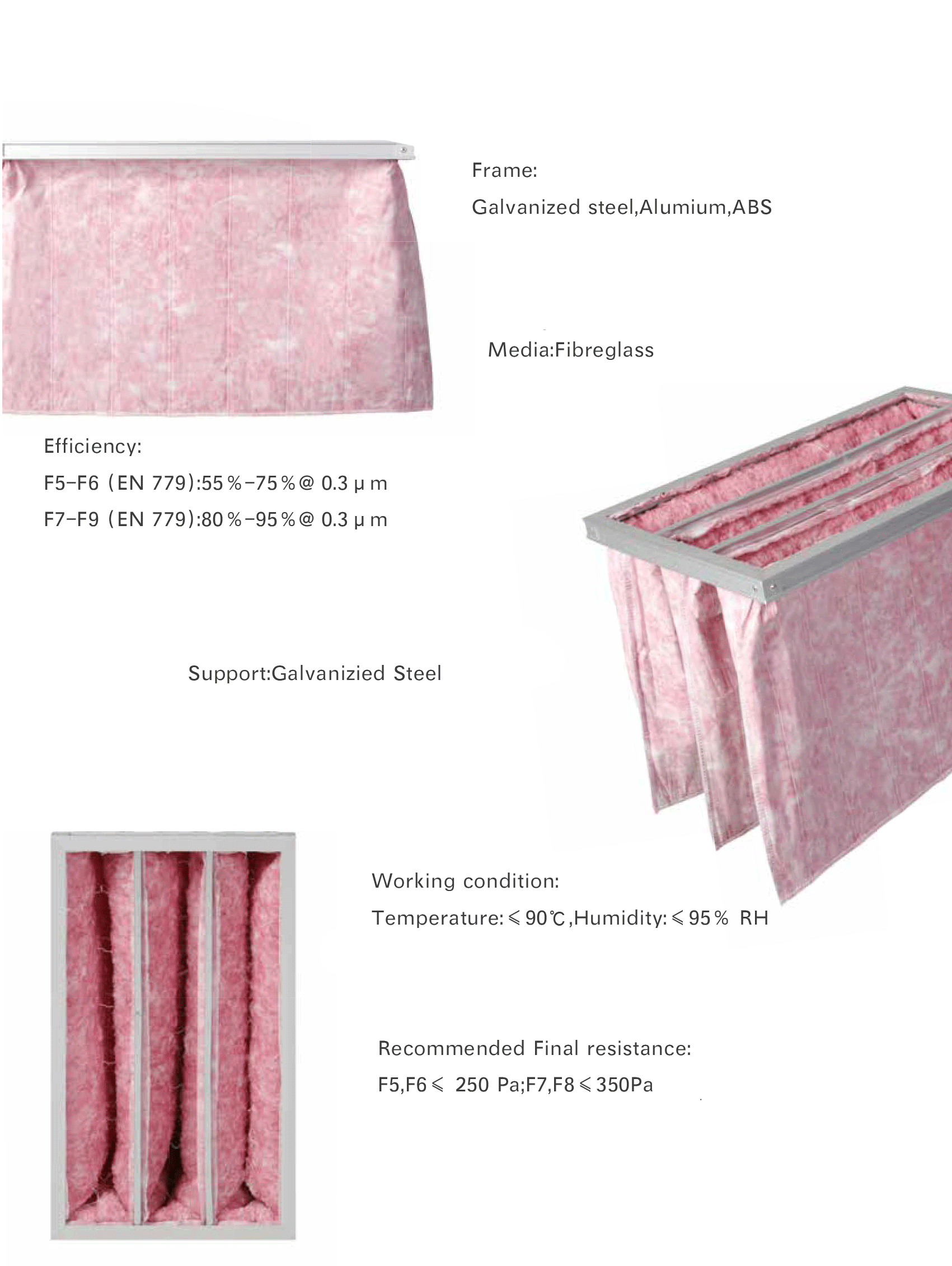

Fibreglass pockets filter	Chemical fiber bag filter
Galvanized steel,Aluminum,ABS	Galvanized steel,Aluminum,ABS
Fibreglass	Synthetic fiber
F5-F6(EN779):55％-75％@0.3μm; F7-F9(EN 779):80％-95％@0.3μm	F5-F6(EN779):55％-75％@0.3μm; F7-F9(EN 779):80％-95％@0.3μm
Galvanized steel	Galvanized steel
Temperature:≤90℃,Humidity:≤95℃ RH	Temperature:≤70℃,Humidity:≤80℃ RH
F5,F6≤250Pa;F7,F8≤350Pa	F5,F6≤250 Pa;F7,F8≤350Pa
