Polyurethane/P3 Panel

Item No.: 300801

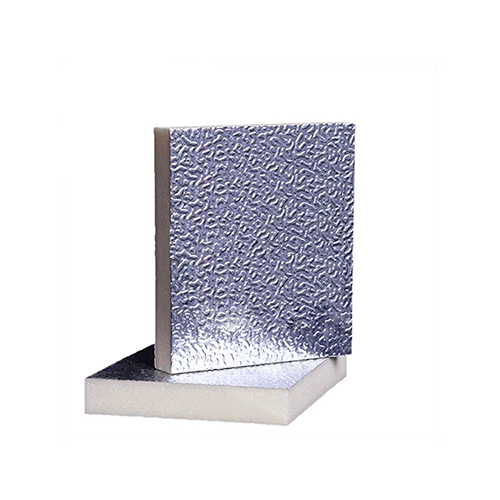

Type A: Aluminum Foil Laminated Polyurethane Panel
Type B: Color Sheet Laminated Polyurethane Foam Insulation Panel
Thickness: 20mm, 25mm, 30mm
Size (L*W): 2000*1200mm, 3000*1200mm,4000*1200mm
$0.00
Description
Description

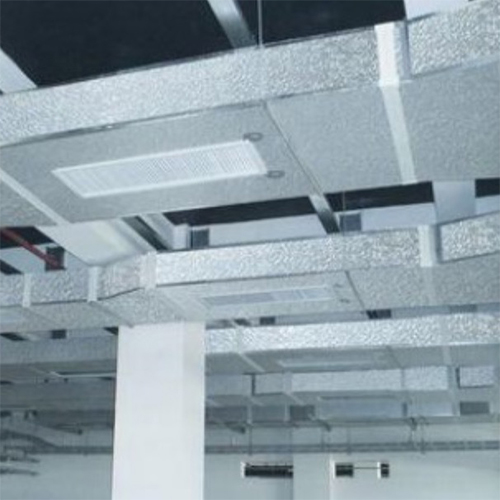

Polyurethane rigid foam is an insulation material with excellent performance on thermal insulation and waterproof. Its thermal conductivity is as low as 0.018~0.024W/(m.K), which is the lowest index among all the current insulation materials. It is widely used in ventilation, commercial air-conditioning duct system, cold stroage insulation and refrigerated truck.

Feature
- Excellent performance on insulation, anti-corrosion and waterproof
- Easy to clear and hygienic
- Working temperature: -50oC~150oC
- Stable physical and chemical properties and good aging resistance

Specification


properties
Fire Rating
Density of core material
Water Absorption
Thermal Conductivity
Wind Resistance Strength
Bonding Strength
Bending Strength
Compressive Strength
Type A: with Alumium foil Type B: WITH COLOR STEEL
B1 (Nonflammable) A(Not burning)
40-45kg/m3 40-45kg/m3
<=1.9% <=1.9%
0.018-0.024W/(mK) 0.018 - 0.024W/(mK)
<=1500Pa <=1500Pa
0.11 0.11
718KPa 718KPa
144KPa 144KPa
