Actually dimension
mm
|
|---|
| 305*610*69 |
| 610*610*69 |
| 1220*610*69 |
| 1170*570*69 |
| 484*484*69 |
| 630*630*69 |
| 305*610*90 |
| 610*610*90 |
| 1220*610*90 |
| 1170*570*90 |
| 484*484*90 |
| 630*630*90 |
|
RATED air volume
m³/h
|
rated initial resistance
h13 (pa)
|
rated initial resistance
H14 (pa)
|
|---|---|---|
| 300 | 125 | 140 |
| 600 | 125 | 140 |
| 1200 | 125 | 140 |
| 1080 | 125 | 140 |
| 380 | 125 | 140 |
| 643 | 125 | 140 |
| 300 | 100 | 110 |
| 600 | 100 | 110 |
| 1200 | 100 | 110 |
| 1080 | 100 | 110 |
| 380 | 100 | 110 |
| 643 | 100 | 110 |
| Model |
|---|
| Frame |
| Media |
| Efficiency |
| Support |
| Faceguard |
| Separator |
| Sealant |
| Working condition |
| Recomended final resistance |

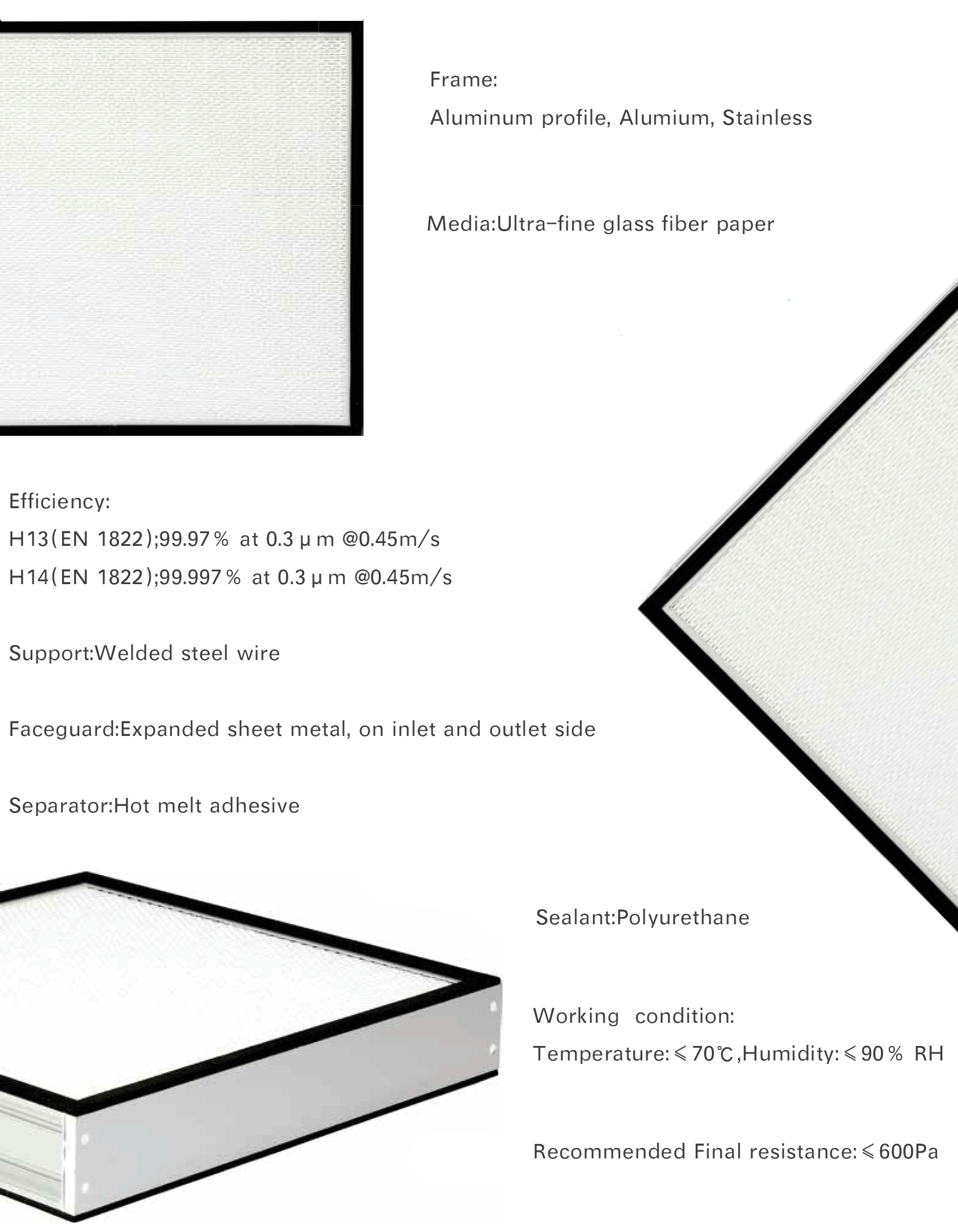

| mini-pleated hepa filter |
|---|
| Aluminum profile, Alumium, Stainless |
| Ultra-fine glass fiber paper |
| H13(EN 1822);99.97％ at 0.3μm @0.45m/s; H14(EN 1822);99.997％ at 0.3μm @0.45m/s |
| Welded steel wire |
| Expanded sheet metal, on inlet and outlet side |
| Hot melt adhesive |
| Polyurethane |
| Temperature:≤70℃,Humidity:≤90％ RH |
| ≤600Pa |
