Actually dimension
mm
|
number of pockets
PCS
|
RATED air volume
m³/h
|
rated initial resistance
G3 pA
|
rated initial resistance
G4 pA
|
|---|---|---|---|---|
| 592*592*381 | 6 | 3400 | 40 | 60 |
| 490*592*381 | 5 | 2800 | 40 | 60 |
| 287*592*381 | 3 | 1700 | 40 | 60 |
| 490*490*381 | 5 | 2300 | 40 | 60 |

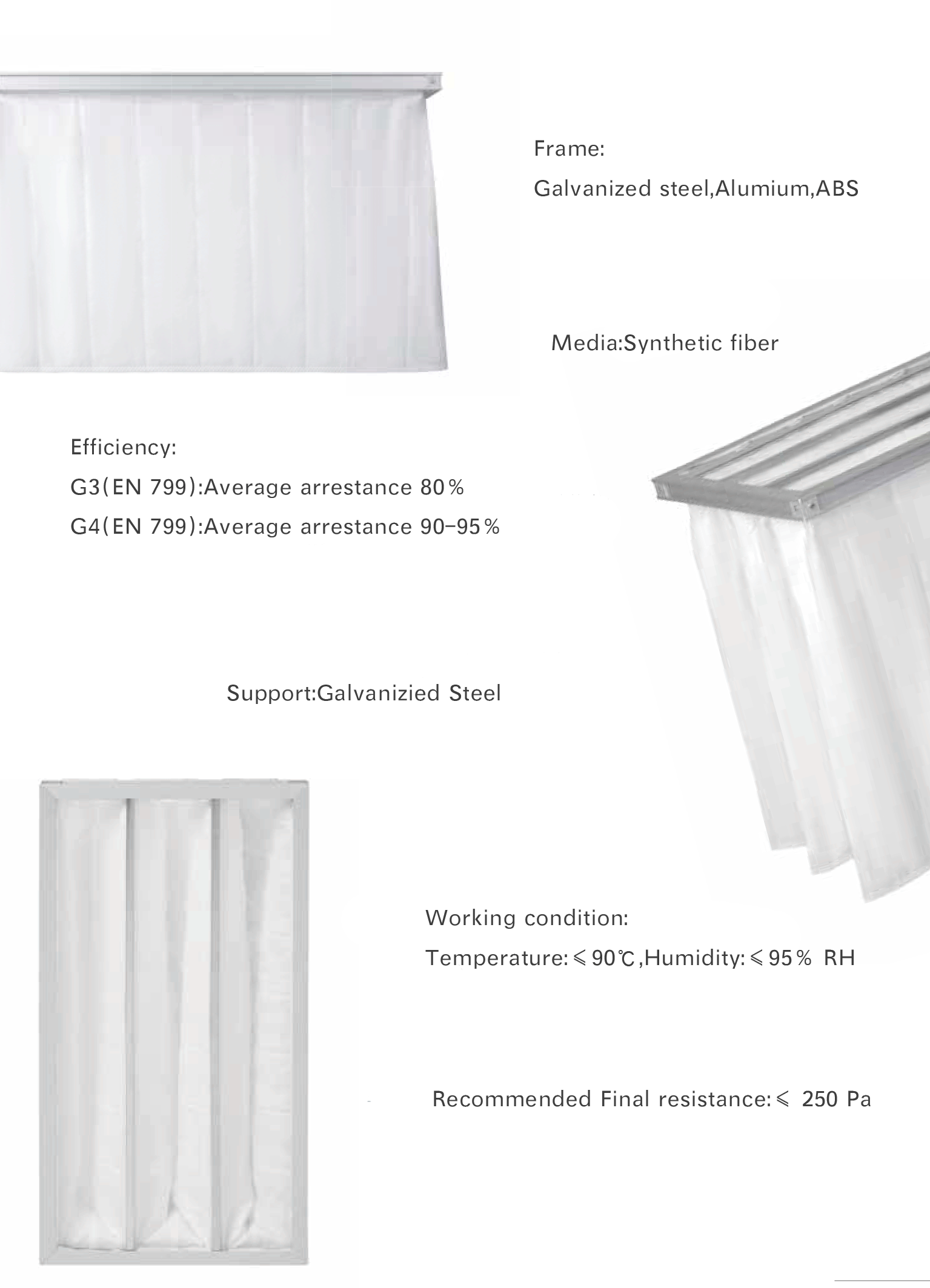

| item |
|---|
| Frame |
| Media |
| Efficiency |
| Support |
| Work conditon |
| Recommended final resistance drop |
| Description |
|---|
| Galvanized steel,Aluminum,ABS |
| Synthetic fiber |
| G3(EN779):Average arrestance 80％, G4(EN 779):Average arrestance 90-95％ |
| Galvanized steel |
| Temperature:≤90℃,Humidity:≤95℃ RH |
| ≤ 250 Pa |
