Nominal dimension
inches
|
Actual dimension
mm
|
RATED AIR VOLUME
m³/h
|
rated initial resistance
G3(PA)
|
rated initial resistance
G4(Pa)
|
|
|---|---|---|---|---|---|
| 24*24*2 | 592*592*46 | 3400 | 70 | 80 | |
| 24*20*2 | 592*490*46 | 2800 | 70 | 80 | |
| 20*20*2 | 490*490*46 | 2300 | 70 | 80 | |
| 24*12*2 | 592*287*46 | 1700 | 70 | 80 | |
| 24*24*4 | 592*592*96 | 3400 | 60 | 70 | |
| 24*20*4 | 592*490*96 | 2800 | 60 | 70 | |
| 20*20*4 | 490*490*96 | 2300 | 60 | 70 | |
|
592*287*96 | 1700 | 60 | 70 |
| item |
|---|
| Frame |
| Media |
| Efficiency |
| Support |
| Work condition |
| Recommended final resistance drop |
| Description |
|---|

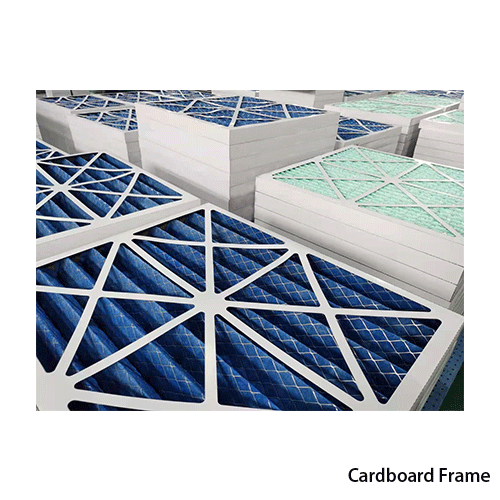

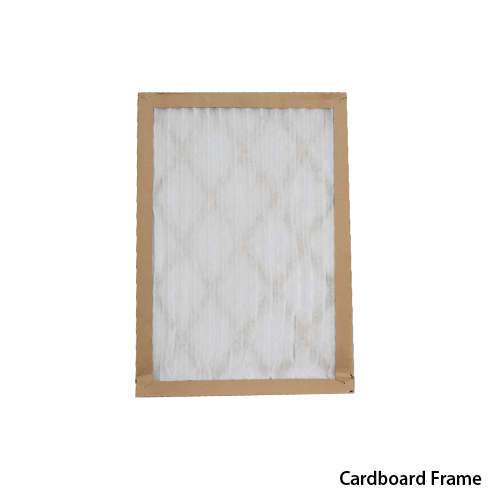

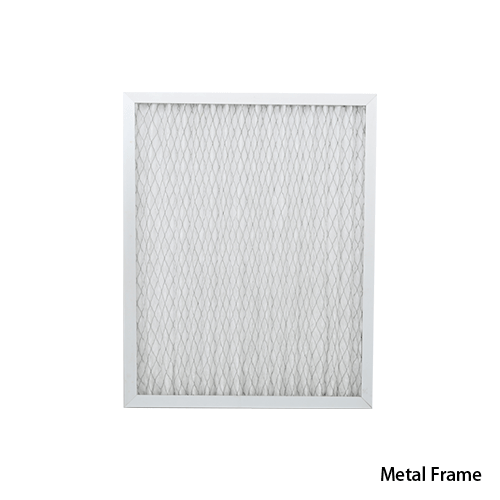

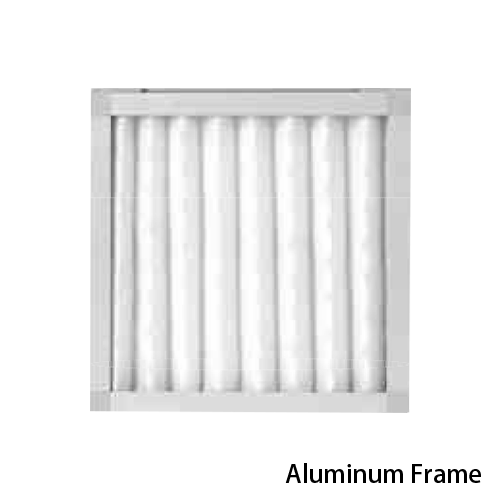

| Galvanized steel,Aluminum,Stainless steel, Cardboard |
| Synthetic fiber, Fibreglass |
| G3(EN779):Avg.arrestance80％, G4(EN 779):Avg.arrestance90-95％ |
| Welded sell wire mesh,Anticorrosion metal support grid |
| Temperature:≤90℃,Humidity:≤95℃ RH |
| ≤ 250 Pa |
