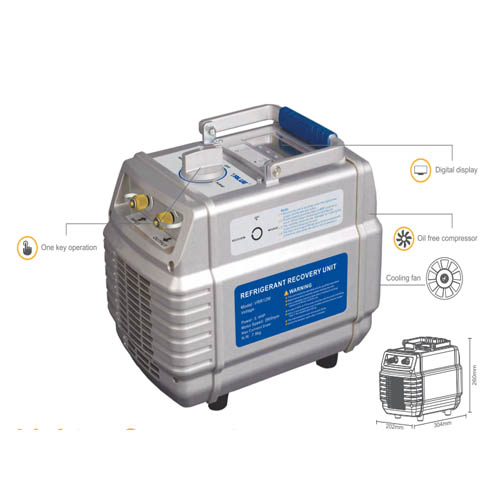

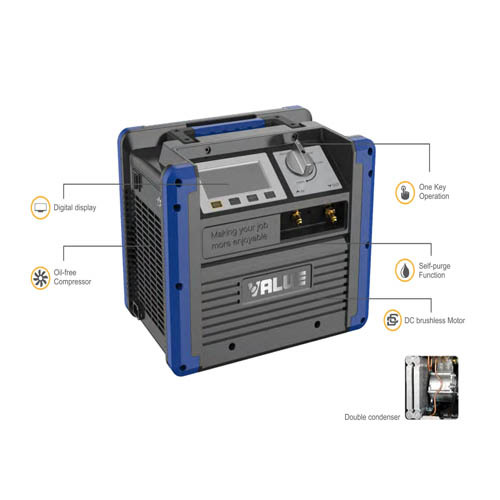

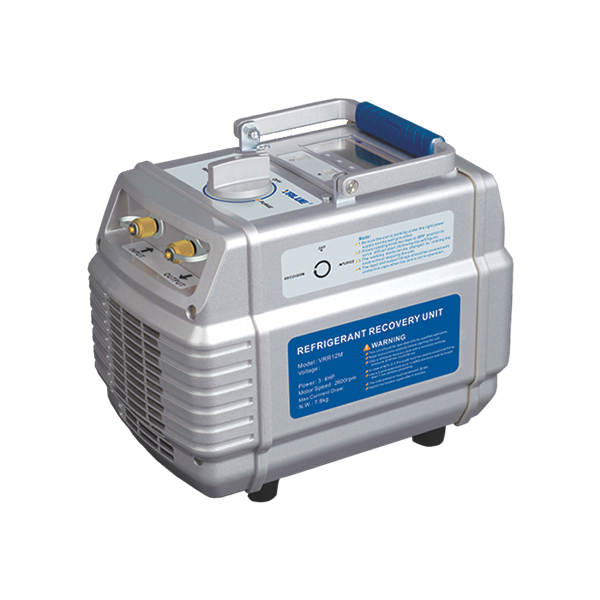

Recovery Unit M Series

Item No.: 4002020045
Recovery Unit
Value Brand
M Series
DC Brushless Motor
Suitable for R32,3000rpm
$0.00
/ Pieces
Description
Description
Description
· Suitable for R32
· Light & Fast & Compact
· DC Brushless Motor
· One Key Operation
· Better Visibility with Large LCD Display
· Oil-free Compressor
· High Pressure Protection
· Self-purge Protection
· Micro Channel Condenser (VRR24M-C)
· Refrigerant:
  Category III:R12,R134a,R401c,R500,1234yf
  Category IV:R22,R401a,R401b,R402b,R407c,R407d,R408a,R409a,R411a,R411b,
                      R412a,R502,R509
  Category V:R402a,R404a,R407a,R407b,R410A,R507,R32
Feature
- Lighter and Faster Recovery with DC Brushless Motor
- One Key Control for easy to use
- Self-purge Function to prevent mixing of various refrigerants
- Oil Free Compressor suitable for all common refrigerants
- Large LCD display and backlit for better Visibility
- Micro Channel Condenser for faster recovery and better cooling performance


Specification



Model #
Power Supply
Motor
Motor Speed
Max. Current Draw
Compressor Type
Auto. Safety Shut-off
Recovery Rate
(vapor/liquid/push/pull)

Operating Temp.
Dimensions
Weight
VRR12M
220~240V 50Hz/60Hz or 115V 60Hz
Brushless DC Motor 3/4HP
3000RPM
2.6A or 5.5A
Oil-less, Air-cooled, Piston Type
38.5bar/3850kPa(558PSI)
Category III: 0.20/1.76/4.60kg/min
Category IV: 0.25/1.98/5.60kg/min
Category V: 0.25/2.42/6.30kg/min
0℃~40℃
304x202x360mm
7.8kg
VRR24M-C
220~240V 50Hz/60Hz or 115V 60Hz
Brushless DC Motor 1HP
3000RPM
5A or 10A
Oil-less, Air-cooled, Piston Type
38.5bar/3850kPa(558PSI)
Category III: 0.43/3.60/7.50kg/min
Category IV: 0.54/4.00/8.50kg/min
Category V: 0.54/4.20/9.50kg/min
0℃~40℃
370x250x297mm
11kg
